Key Attributes
- Applicable to both metal and plastic surfaces.
- Provides superior corrosion and abrasion protection.
- Tenacious adhesion for long-term service.
- Paintable
BUYAN Self-Sealing Coating
BUYAN Self-Sealing Coating has overcome the limitations of traditional ballistic protection methods by sealing the hole instead of preventing it. BUYAN is a revolutionary technology designed to minimize or prevent leakage of fuel tankers or fuel pipes, due to smallarms fire, which can cause hazardous conditions for troops transporting fuel as well as operational risks caused by the resulting lack of fuel. BUYAN can be applying as coating for any metal or plastic fuel tank, including pipelines. Thanks to its unique technology and structure, BUYAN can seal off the undesired entrance and exit holes created by a projectile.
POSSIBLE APPLICATIONS
BUAN self-sealing coatings can be applied to many types of military, government, private vehicles, buried fuel tankers, fuel tanker carriers and the fuel piping.
Military applications;
BUYAN is designed to offer progressive levels of ballistic protection. BUYAN is an ideal coating for armored cars, tactical and military vehicles, defense fuel tanks, battle tanks, personal carriers, armored vehicles, swat vehicles, and hazmat vehicles. BUYAN is designed to keep fuel contained and occupants safe.
Civil applications;
Tulpar provides self-repairing coating technology for preventing leakage of hydrocarbon storage vessels. This advanced coating automatically repairs the damages on the fuel pipelines, tankers, and facilities for fuel and petrochemicals transportation. This coating not only protects the pipelines from corrosion, but it can also repair the crashes such as the holes made by an accident. Application of this coating on fuel tankers and pipelines can prevent environmental disasters due to an accident and probable leakages.
Technical Specifications
- Hardness, Shore A – 85
- Operational Temperature Range: -20 to 60 deg. C.
- “ Seal against 9 mm/.375 mag, 7.62 mm/.308 cal AP and 12.7 mm/ .50 cal * ammunitions. (* Pending independent test results)
Notes:
Fuel tanks protected by Tulpar BuyanTM do not need armored plates protection.Density of self-sealing solution by Tulpar (approx. 11kg/m² instead of armored steel approx. 80kg /m²) brings a very significant weight saving opportunity (up to -80%)

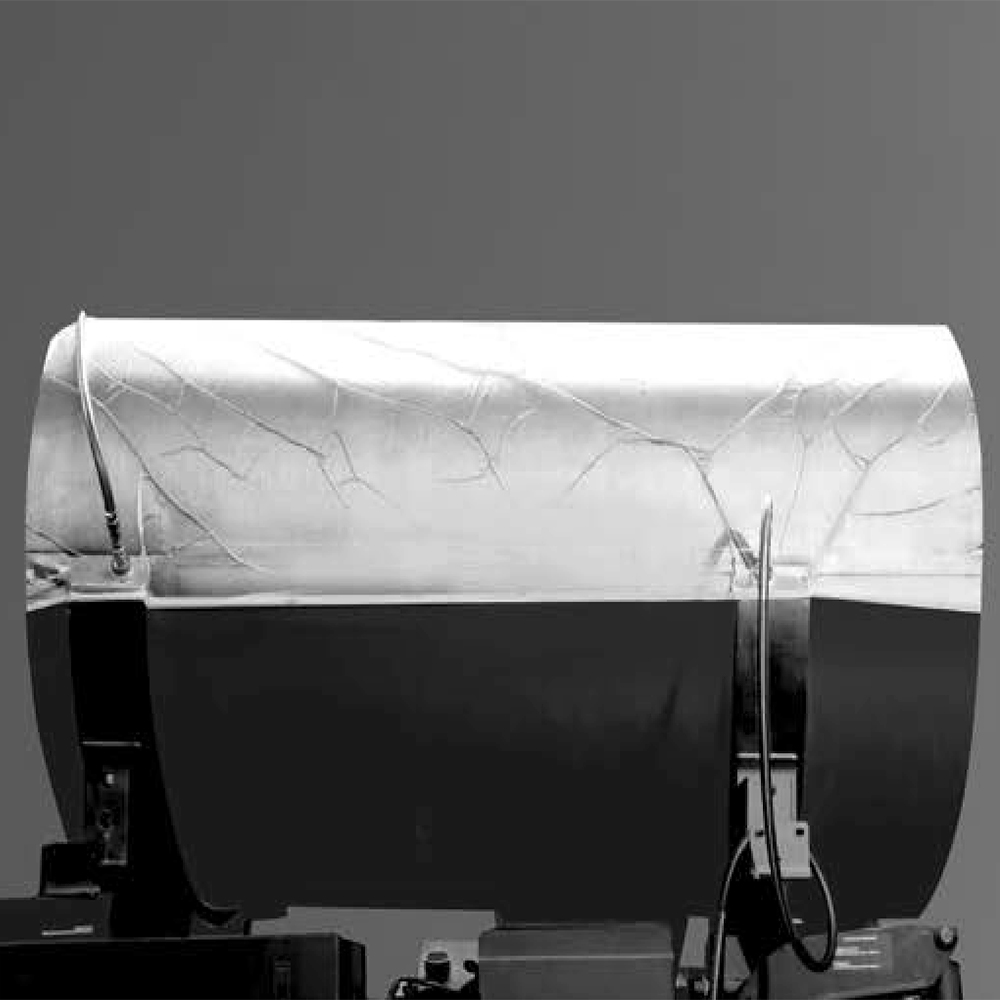

The BuyanTM is a specially developed self-sealing outer coating. Entry and exit holes seal instantly, retaining the fuel inside the tank and minimizing the potential ignition of spilled fuel. Depending on fuel tank design and specifications it seals ammunition wounds up to at least 7.62 NATO/AP. Other application up to; and even 12.7mm.
20 Liter Jerry Can manufactured from 0.8mm Cold Rolled Steel. Coated with BUYAN self sealing coating.
- Protaction level : STANAG 4569 Level III
- Seam welded for extra strength.
- Three Handle Configuration.
- Locking pin in cap.
- Strengthened hinge on cap to prevent accidental bending when closing.
- Lined inside with fuel resistant coating to prevent rusting.
- A rubber gasket at it’s mouth makes it 100% leak proof.
- Dimensions : 345 x 165 x 468 mm
